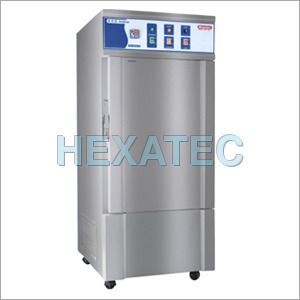

Standard Model B.O.D. Incubator

Product Details:

Product Type Standard Model B.O.D. Incubator
Color White & Blue
Weight 10-120 Kilograms (kg)
Voltage 120-440 Volt (v)
Material Stainless Steel
Warranty 1 Year
Share Your Product:

85000 INR

Get a Price/Quote

Request To Call Back Send Inquiry

Standard Model B.O.D. Incubator Price And Quantity

Minimum Order Quantity 1 Unit
Price 85000 INR

Standard Model B.O.D. Incubator Product Specifications

Product Type Standard Model B.O.D. Incubator
Color White & Blue
Weight 10-120 Kilograms (kg)
Voltage 120-440 Volt (v)
Material Stainless Steel
Warranty 1 Year

Standard Model B.O.D. Incubator Trade Information

Payment Terms Cash in Advance (CID) Cash Advance (CA)
Supply Ability 1 Unit Per Day
Delivery Time 1 Week
Main Export Market(s) Australia North America Eastern Europe Middle East Western Europe Africa Central America South America Asia
Main Domestic Market All India

Product Description

We are specialized in this field, manufacturing and exporting a huge range of B.O.D. Incubator - Standard Model. This model of incubator is assembled by utilizing superior quality components as per international quality standards of industry under the supervision of our experts at our well resourced production unit. The incubator we provide is particularly designed to resemble incubation criteria required for bod examination of water as well as waste water samples. We offer this B.O.D. Incubator - Standard Model at very competitive price range to our customers.

Features:

Properly covered by electrical insulation sheets
Rust resistance body
Excellent operability

Specifications:

Double walled in construction, gap between the two walls filled with high quality Polyeurethene Foam (PUF)
Full length inner acrylic door with and outside metal door with solid S.S. lock & key.
Food Grade Silicon Gasket fitted on the Chamber and Magnetic Gasket fitted on outer metal door ensures zero leakage between the door & the Chamber.
Provided with forced air circulation for uniform temperature within the chamber.
Hermetically sealed Emerson Make Compressor unit utilizing R-134A an eco-friendly refrigerant with electronic time relay to safeguard the Compressor.
Castor wheels for easy moveability. Provided with Validation Port.
Additional high temperature safety system to cut-off all heaters ensuring temperature within chamber doesn't exceed +70^oC also incorporated in the Unit.
Electrically operated on 230 V Ac, 50 Hz. Supply.
TEMPERATURE RANGE : + 5^oC to + 60^oC
TEMPERATURE ACCURACY : ± 0.5^oC
TEMPERATURE UNIFORMITY : ± 0.5^oC

Standard Model - HIPL- 003 :

Outer chamber made of Mild Steel [ 20 swg.] duly powder coated and inner chamber made of Stainless Steel LM-304 grade [ 20 swg.] Mirror finish.Microprocessor based AUTO-TUNING PID Digital Temperature Indicating Controller, Resolution 0.1^oC with suitable sensor. In the event of power failure, Non-Volatile memory allows chamber to return to original set point when power is restored.Thermostatic High Temperature Safety cut off provided.Rod type Shelves provided are made of Stainless Steel

Capacity	Internal Dimension W X D X H [cms]	External Dimension W X D X H [cms]	Shelves
3 Cu.Ft. [ 90Ltrs]	45 x 45 x 45	64 x 92 x 125	2
4 Cu.Ft. [ 120Ltrs]	45 x 45 x 60	64 x 92 x 140	2
6 Cu.Ft. [165 Ltrs]	50 x 50 x 70	69 x 97 x 150	2
10 Cu.Ft. [ 280 Ltrs]	55 x 55 x 90	74 x 102 x 170	3
12 Cu.Ft. [ 324 Ltrs]	60 x 60 x 90	79 x 107 x 170	3
16 Cu.Ft. [ 440 Ltrs]	60 x 60 x 125	79 x 107 x 205	4
29 Cu.Ft. [ 800 Ltrs]	80 x 80 x 125	99 x 127 x 205	5

Standard Model - HIPL- 003 :

Outer chamber made of Mild Steel [ 20 swg.] duly powder coated and inner chamber made of Stainless Steel LM-304 grade [ 20 swg.] Mirror finish.
Microprocessor based AUTO-TUNING PID Digital Temperature Indicating Controller, Resolution 0.1oC with suitable sensor. In the event of power failure, Non-Volatile memory allows chamber to return to original set point when power is restored.
Thermostatic High Temperature Safety cut off provided.
Rod type Shelves provided are made of Stainless Steel

Capacity	Internal Dimension W X D X H [cms]	External Dimension W X D X H [cms]	Shelves
3 Cu.Ft. [ 90Ltrs]	45 x 45 x 45	64 x 92 x 125	2
4 Cu.Ft. [ 120Ltrs]	45 x 45 x 60	64 x 92 x 140	2
6 Cu.Ft. [165 Ltrs]	50 x 50 x 70	69 x 97 x 150	2
10 Cu.Ft. [ 280 Ltrs]	55 x 55 x 90	74 x 102 x 170	3
12 Cu.Ft. [ 324 Ltrs]	60 x 60 x 90	79 x 107 x 170	3
16 Cu.Ft. [ 440 Ltrs]	60 x 60 x 125	79 x 107 x 205	4
29 Cu.Ft. [ 800 Ltrs]	80 x 80 x 125	99 x 127 x 205	5

Optionals :

DIGITAL High Temperature Safety cut off in lieu of Thermostatic High Temperature Safety cut off (For STANDARD Models Only)
Microprocessor based PROGRAMMABLE PID Controller cum Indicator with Printer Interface to connect Dot Matrix Printer. Print interval programme can print Date, Time & Temperature with print interval settable between 1 to 99 minutes [ without Printer ]
Same as above but with PC software & connectivity

NOTE : Use of a Voltage Stabilizer is strongly recommended for all B.O.D. Incubator Chambers and is a pre-condition for free service during warranty period.
